Data correlation overview


Overview

A request can include data that was returned in the response to a previous request. Associating data in this manner is called data correlation.
Video: Data correlation in Rational Performance Tester

Interactions with an application are typically related to each other. For example, consider the following interactions with a web-based application, in which each request depends on information returned from a previous response:

  1. A payroll clerk types the web address for an application, which sends a login prompt.

    When the clerk logs in, the web server returns a page that indicates that login has succeeded and a unique session ID to the web browser that the clerk is using.

  2. The clerk clicks a link on the returned page, which requests that the web server open the page for searching the employee database.

    The web browser includes the session ID when sending the request. Based on the session ID, the web server knows that the request comes from someone who is already logged on, and so opens the search form for the employee database. The clerk then searches for a specific employee. The web server returns a photograph of that employee and the employee's unique ID.

  3. The clerk clicks a link that requests the web server to return the payroll record for the employee. With this request, the web browser sends two IDs:

    • The session ID, so the web server knows that the request comes from some who is logged on

    • The employee ID, so the web server can locate and return the correct information

In this example, request 2 depends on request 1, and request 3 depends on requests 1 and 2.

If you record these interactions in a test, before running the test with multiple users, you would vary the test data. For example, you would replace the user name and password values, the employee name search values, or both, with values that datapools contain. When you run the test, each virtual user returns a different employee payroll record, based on the contents of the datapools.

In a generated test, where data in a request depends on data contained in the response to a previous request, the request data is substituted from the response data on which it depends. The term for this internal linking of response and request data is data correlation. When you run a test with multiple users and varied data, data correlation is required to ensure that the test runs correctly.


References

A reference is a value in a test (typically in a response) that can be used by a subsequent value in the test (typically in a request). When the test generator detects that a request value must be substituted from a previous value, it designates the earlier value as a reference and correlates the subsequent request value with the reference. This process is called automated data correlation. You can also manually correlate any two values in a test or unlink existing correlations.

You can change or disable automated data correlation. To do so, click...

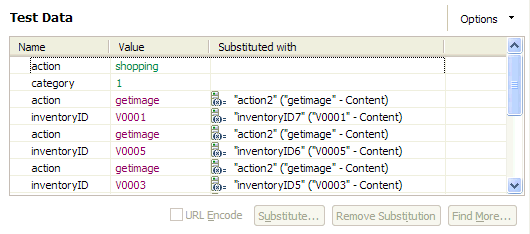

When you click a page, you see a Test Data table for that page.

If correlated data is not displayed, right-click the table and verify that Show References is selected.

To navigate directly to a page request containing correlated data, double-click a table row.

To associate correlated data from this table with a datapool...

You can also use the Test Data Sources view to make substitutions. In the test editor, select...

When you click a row in the Test Data table, the Test Data Sources view displays information about the selected substitution site.

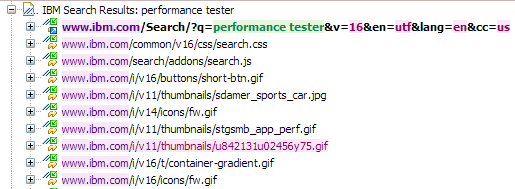

When you expand a page, green text indicates page requests containing datapool data or candidates. Blue text indicates page requests containing references.

Text highlighted in dark blue is a candidate for data correlation

When you click a highlighted request, datapool candidates are highlighted in light green, data associated with a datapool is highlighted in dark green, and correlated data is highlighted in red.

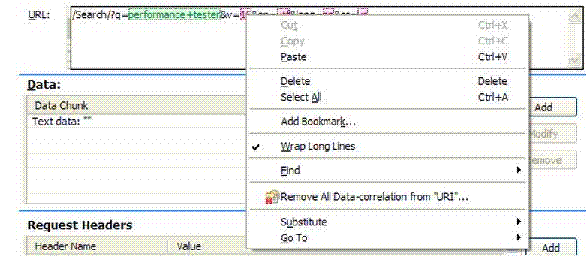

If you right-click a value for correlated data, as shown in the example, you can then click Go To to see its reference:

References are highlighted in dark blue.
