Generating the sample Web application
To generate the simple Web Application, follow these steps:
| In the Workbench, select File Æ New Æ Other Æ J2C Æ Web Page, Web Service, or EJB from J2C Java Bean.
|
|
| In the Java EE Resource from J2C Bean dialog (Figure | 0-38) click Browse for the J2C Bean implementation and select CustomerImpl. Click Next.
|
Figure 20-38 J2C Java bean selection
|
| In the Deployment Information dialog (Figure | 0-39), select Simple JSP and click Next.
|
Figure 20-39 Deployment Information
|
| In Simple JSP Creation dialog, click New for the Web project field to create a new Web project.
|
|
| In the Dynamic Web Project dialog, type RAD75SAPTestWeb as Project name and RAD75SAPTestWebEAR as EAR Project Name. Ensure that WebSphere Application Server v7.0 is selected for Target Runtime. Click Finish.
|
|

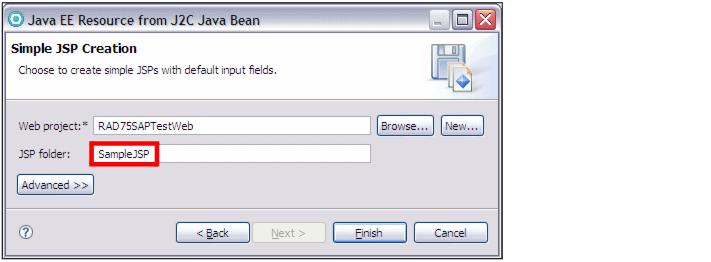

| In the Simple JSP Creation dialog (Figure | 0-40), enter SampleJSP as JSP Folder. Click Finish.
|
Figure 20-40 Simple JSP Creation
|
| After finishing with the Simple JSP Creation Wizard, you have the following two projects created in your workspace:
|
RAD75SAPTestWeb
|
|
RAD75SAPTestWebEAR
|
|
| The RAD75SAPTestWebEAR project has to reference the CWYAP_SAPAdapter project. We configure this dependency by adding the CWYAP_SAPAdapter as a dependency to the EAR project:
|
|
In the Enterprise Explorer, right-click RAD75SAPTestWebEAR and select Properties. Select Java EE Module Dependencies and select CWYAP_SAPAdapter, then click OK.
|
|
Right-click RAD75SAPTestWeb and select Properties. Select Java EE Module Dependencies and select CWYAP_SAPAdapter.rar, then click OK.
|
