Perspective layout
Many of Rational RAD's perspectives use a similar layout. Figure | -1 shows the general layout that is used for most default perspectives.

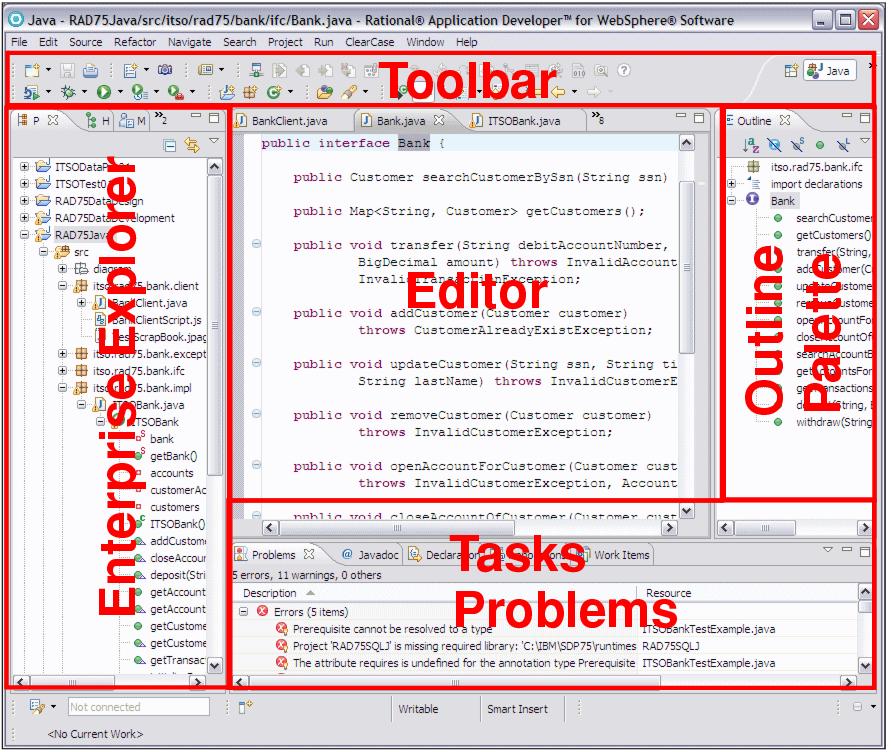

Figure 4-1 Perspective layout
On the left side are views for navigating through the workspace. In the middle of the Workbench is larger pane, where the main editors are shown. The right pane usually contains Outline or Palette views of the file in the main editor. In some perspectives, the editor pane is larger and the outline view is located at the bottom left corner of the perspective. At the bottom right is a tabbed series of views including the Tasks view, the Problems view, and the Properties view. This is where smaller miscellaneous views, which are not associated with navigation, editing, or outline information, are shown.
|
