Setting the number of columns in a Heritage Coach
Learn how to set the number of columns for each section of a Heritage Coach.
Procedure
- Open the service that contains the Heritage Coach that you want to change and then click the Coaches tab.
- In the design area, click the section that you want to change.

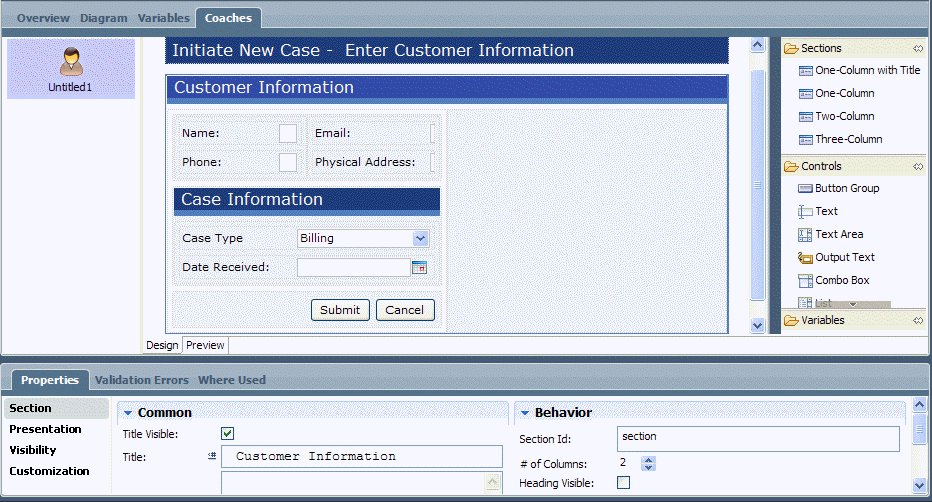

- Click the Section option in the properties and then click the up and down arrows for the # of Columns option to increase or decrease the number of columns in the section. In the following example, one additional column is added to a section that contains a nested two-column section. Notice the behavior of the nested
section when its parent section is configured.
- Click the Preview tab to see how the Heritage Coach layout will look when the service runs.
