Common Base Events for activities
Common Base Events are emitted for activities if monitoring is requested for these activities in IBM Integration Designer. A list of all the events that can be emitted by an activity can be found here. These events are also written to the audit log.
State transitions and activity events
The state changes and the events that are emitted depend on the type of activity:
- Invoke, assign, empty, reply, rethrow, throw, terminate, and Java
snippet activities
Figure 1. State transitions and events for invoke activities and short-lived activities
- Pick (receive choice), wait, and receive activities

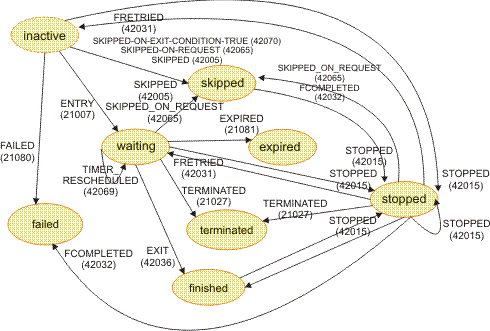

Figure 2. State transitions and events for wait, and receive activities
- Human task activities

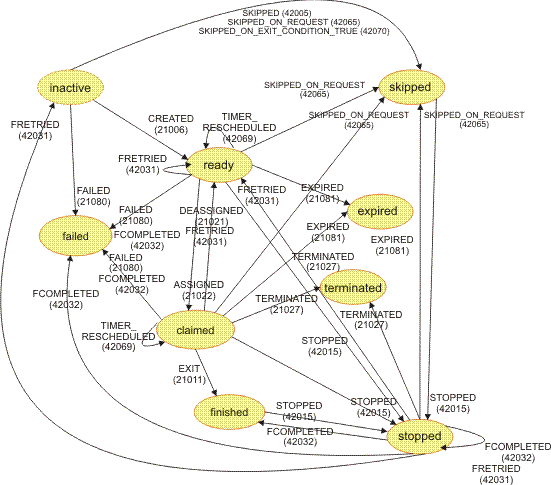

Figure 3. State transitions and events for human task activities
- Structured activities, such as flow or sequence activities
Figure 4. State transitions and events for structured activities
Activity events
The columns in the following table contain:
- Code
- Contains the number of the event. For Business Monitor 6.0.2 format events, the value is written to the Common Base Event as an extended data element with the name BPCEventCode. For Business Monitor 6.1 format events, the value is written to the xs:any slot of the Common Base Event.
- Event name and extension name
- This column contains two values. The name of the event and the value that is set in the extensionName attribute of the Common Base Event. The extension name identifies which event specific information is contained in the Common Base Event, and it is also the name of the XML element that provides additional data about the event.
- Situation
- Refers to the situation name of the BPEL process event.
- Event nature
- A pointer to the event situation for a BPEL process element in the EventNature parameter, as they are displayed in IBM Integration Designer.
The following table describes all activity events.
| Code | Event name and extension name | Situation | Event nature | Description |
|---|---|---|---|---|
| 21006 |
ACTIVITY_READY | Start | CREATED | Activity ready. This event is emitted when a human task activity is started. |
| 21007 |
ACTIVITY_STARTED | Start | ENTRY | Activity started. For invoke activities, a business object payload is available. |
| 21011 |
ACTIVITY_COMPLETED For invoke, human task, receive, and reply activities: BPC.BFM.ACTIVITY. MESSAGE For pick activities: BPC.BFM.ACTIVITY.EVENT For all other activity types: BPC.BFM.ACTIVITY. | Stop | EXIT | Activity completed. For invoke, human task, receive, and reply activities, a business object payload is available. |
| 21021 |
ACTIVITY_CLAIM_ | Report | DEASSIGNED | Claim canceled. This event is emitted when the claim for a human task activity is canceled. |
| 21022 |
ACTIVITY_CLAIMED | Report | ASSIGNED | Activity claimed. This event is emitted when a human task activity is claimed. |
| 21027 |
ACTIVITY_ | Stop | TERMINATED | Activity terminated. Long-running activities can be terminated as an effect of fault handling on the scope or process the activity is assigned to. |
| 21080 |
ACTIVITY_FAILED | Failed | FAILED | Activity failed. This event is emitted if a fault occurs when the activity runs and the fault is propagated to the fault handlers that are defined for the enclosing scopes or process. |
| 21081 |
ACTIVITY_EXPIRED | Report | EXPIRED | Activity expired. This event applies to invoke and human task activities only. |
| 42005 |
ACTIVITY_SKIPPED | Report | SKIPPED | Activity skipped. This event applies only to activities that have join behavior defined. If the join behavior evaluates to false, then the activity is skipped and the skipped event is emitted. |
| 42012 |
ACTIVITY_OUTPUT_ | Report | OUTPUTSET | Activity output message set. A business object payload is available.
This event is emitted when the output message for a claimed human task activity is set without completing the activity, for example, to store intermediate results. The state of the activity does not change. This event is not emitted when a human task activity is completed. |
| 42013 |
ACTIVITY_FAULT_ | Report | FAULTSET | Activity fault message set. Business object payload is available.
This event is emitted when a fault message for a claimed human task activity is set without completing the activity. This event is not emitted when a human task activity is completed with a fault. |
| 42015 |
ACTIVITY_STOPPED | Stop | STOPPED | Activity stopped. An activity can be stopped if an unhandled fault occurs when the activity runs. |
| 42031 |
ACTIVITY_FORCE_ | Report | FRETRIED | Activity forcibly retried. To force activities to retry, use Business Process Choreographer Explorer. |
| 42032 |
ACTIVITY_FORCE_ | Stop | FCOMPLETED | Activity forcibly completed. To force activities to complete use Business Process Choreographer Explorer. |
| 42036 |
ACTIVITY_MESSAGE_ | Report | EXIT | A pick (receive choice) activity has received a message |
| 42037 |
ACTIVITY_LOOP_ | Report | CONDTRUE | Loop condition true |
| 42038 |
ACTIVITY_LOOP_ | Report | CONDFALSE | Loop condition false |
| 42039 |
ACTIVITY_WORKITEM_ | Report | WI_DELETED | Work item deleted. This event applies to pick, human tasks, and receive events only.
This event is emitted only when a work item is explicitly deleted by an API request. If the work item is deleted because the corresponding process instance is deleted, an event is not emitted. |
| 42040 |
ACTIVITY_WORKITEM_ | Report | WI_CREATED | Work items created. This event applies only to pick, human tasks, and receive events. |
| 42050 |
ACTIVITY_ESCALATED | Report | ESCALATED | Activity escalated. This event applies only to pick, human tasks, and receive events when the escalation associated with the human task activity is raised. |
| 42054 |
ACTIVITY_WORKITEM_ | Report | WI_REFRESHED | Activity work items refreshed. This event applies only to pick, human tasks, and receive events. |
| 42055 |
ACTIVITY_WORKITEM_ | Report | WI_TRANSFERRED | Work item transferred. This event applies only to pick, human tasks, and receive events. |
| 42057 |
ACTIVITY_PARALLEL_ | Report | BRANCHES_STARTED | This event is emitted when branches are started for a forEach activity. |
| 42060 |
ACTIVITY_ | Report | CP_SET | This event is emitted when a custom property of an activity instance is changed. |
| 42061 |
ACTIVITY_BRANCH_ | Report | CONDTRUE | This event is emitted when the case condition of a choice activity evaluates to true. There is, at most, one event with the case element condition set to true for each navigated choice activity instance. That is, non-entered case elements are not honored by an event, and otherwise elements provoke the same event as condition case elements. |
| 42062 |
ACTIVITY_ALL_BRANCH_ | Report | ALLCONDFALSE | This event is emitted when no case element was used and no otherwise element exists. In this case, the navigation continues at the end of the choice construct. |
| 42063 |
ACTIVITY_JUMPED | Report | JUMPED | This event is emitted after the final activity event of the source activity of the jump action and before the first event of the target activity. |
| 42064 |
ACTIVITY_SKIP_ | Report | SKIP_REQUESTED | Skip activity requested. This event is emitted
if the corresponding activity is not in an active state and a skip or cancelSkipRequest API is called. In this case, the request has no immediate effect on the navigation. The event contains a flag to distinguish between a skip and a cancelSkipRequest call.
The ECSCurrentID for the event to be skipped is not set to the AIID of the associated activity. |
| 42065 |
ACTIVITY_SKIPPED_ | Report | SKIPPED_ON_REQUEST | Event skipped on request. This event is emitted when the navigation after an activity that is marked for skipping is continued. |
| 42069 |
ACTIVITY_TIMER_ | Report | TIMER_RESCHEDULED | This event is emitted when a rescheduleTimer request is processed. This event can be produced for wait, human task, invoke, and pick activities. |
| 42070 |
ACTIVITY_SKIPPED_ | Report | SKIPPED_ON_EXIT_CONDITION_TRUE | This event is emitted when an exit condition of the onEntry type evaluates to true, and the activity is skipped for this reason. |
| 42072 |
ACTIVITY_CHILD_PROCESS_ | Report | CHILD_ PROCESS_TERMINATING | This event is emitted if the corresponding activity is an invoke activity in the running state, has a child process, and the forceRetry, forceComplete, or skip API is called or the activity expires. |
| 42073 |
ACTIVITY_CONDITION_ | Report | ACTIVITY_CONDITION_FORCED | An activity that has stopped because of an error evaluating a join condition was forced to continue navigating. |
| 42074 |
ACTIVITY_LOOP_ | Report | ACTIVITY_LOOP_CONDITION_FORCED | An activity that has stopped because of an error evaluating a repeat-until or while loop condition was forced to continue navigating. |
| 42075 |
ACTIVITY_FOR_EACH_ | Report | ACTIVITY_FOR_EACH_COUNTERS_FORCED | An activity that has stopped because of an error evaluating a for-each loop condition was forced to continue navigating. |
For most activity events, the following event correlation sphere identifiers have the following content:
- The ECSCurrentID provides the ID of the activity.
- The ECSParentID provides the ID of the containing process.
For the BPC.BFM.ACTIVITY.CUSTOMPROPERTYSET and BPC.BFM.PROCESS.CUSTOMPROPERTYSET events, the ECSCurrentID is set to the process instance ID. The ECSParentID is set according to the context of the process instance.
Attention: The associatedObjectID and the associatedObjectName fields specify the activity or process instance ID or name of the associated object for these events.
