Deciphering Run errors
Do not panic. You should have gotten an error, indicated by the
stack dump appearing in the log output. Scroll to the top of the very
first stack dump. Here you will see information on both where the
problem occurred as well as what caused it.
The component name is in brackets ('PhoneDB') followed by the error
description that an Entry was not found – in other words, that the
Lookup failed.
When a Connector is configured in Lookup mode, the
system expects to find one and only one matching record when the search
is performed. If none are found – or if multiple records match the
Link Criteria – then you end up in special Hooks that must at least be enabled to prevent the AL from stopping. This behavior

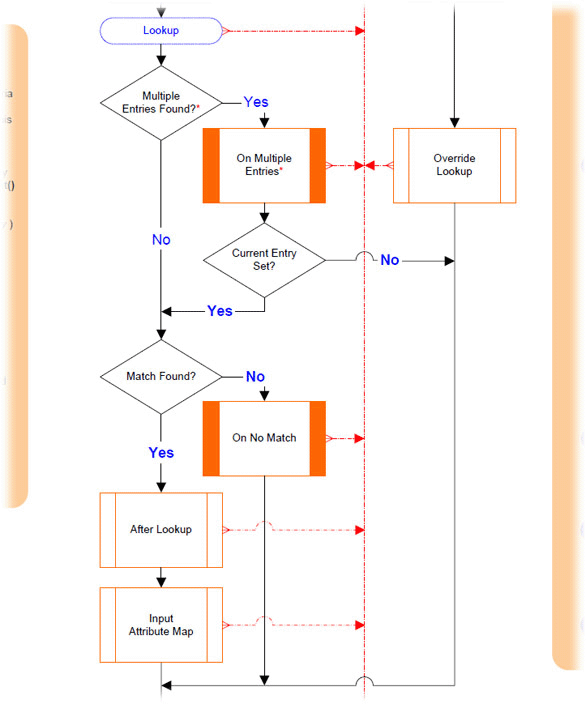

is clearly visible in the DataFlow diagrams that are part of the SDI v7.2 Reference
Guide. Here is an excerpt from the page
detailing Lookup mode:
We can take advantage of this behavior to set your foundUser flag
variable. Right-click on the 'PhoneDB' Connector and choose Hooks... to
open the Hooks editor. Select the 'On No Match' Hook and enter the
script code to set foundUser to false.
Now choose 'After Lookup' and enter this complimentary Hook script1:
Your AssemblyLine should now resemble the one in this screenshot:
It's time to Run this AssemblyLine
again, and this time it should complete without errors. The Output.xml file
should be identical to the results you got from your Loop-based AL.
Congratulations! You have just completed your first Security Directory Integrator tutorial exercise. Now it's
time discuss how AssemblyLines can be triggered by real-time events.
1 As
we can see from the Flow Diagram, the 'After Lookup' Hooks is only
executed if the search results in a single match.
foundUser = false;
foundUser = true;
Parent topic:
Using Lookup Mode
