Regenerate collective security certificates

Default collective self-signed certificates are valid for only 5 years. If these certificates expired, then we need to generate new self-signed certificates using the steps in this procedure. The regeneration procedure is exclusive to certificates signed by a collective root signer. These instructions do not apply for Certificate Authority (CA) signed certificates. The steps in this procedure only apply if we are using a collective environment with default certificates.

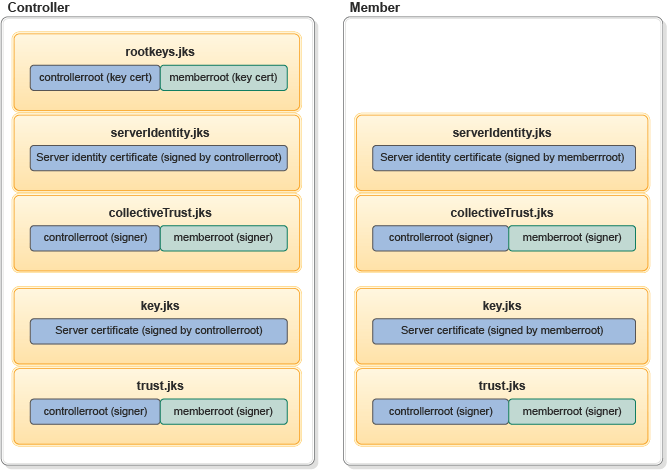

Liberty 19.0.0.2 and earlier comes with .jks (format type is JKS) and Liberty 19.0.0.3 and later comes with .p12 (format type is PCKS12)

Before proceeding, create a backup of every keystore in your collective system.

The connection between the controller and members will be interrupted as you follow the steps in the procedure.

For public-facing production servers, use only CA-signed certificates, including product-created and our own organization's CAs. Do not use self-signed certificates for public facing servers.

To renew the certificates signed with the collective root, we use any certificate generator tool such as keytool or iKeyman.

As we go through these steps, if we are using JKS [.jks] keystores, replace all references to PKCS12 [.p12].

Replace every attribute that has the dollar sign [$] to the actual value for the configuration.


Generate controller and member root certificates

  1. Run this command to list the certificates inside your rootKeys.p12 keystore.

      keytool \
    -list
    -v \
    -keystore $PATH_CONTROLLER_SERVER/resources/collective/rootKeys.p12 \
    -storepass $KEYSTORE_PASSWORD \
    -storetype PKCS12

    Sample command and output

      /root/wlp/java/java/jre/bin/keytool \
    -list \
    -v \
    -keystore /root/wlp/usr/servers/controller/resources/collective/rootKeys.p12 \
    -storepass password \
    -storetype PKCS12

Alias name: controllerroot
Owner: OU=controllerRoot, O=6b66c164-0133-41d8-9f78-913622da530a, DC=com.ibm.ws.collective
Alias name: memberroot
Owner: OU=memberRoot, O=6b66c164-0133-41d8-9f78-913622da530a,
DC=com.ibm.ws.collective

    Store the DN-NAME that gets printed in a text file. The DN-NAME in the sample is OU=memberRoot, O=6b66c164-0133-41d8-9f78-913622da530a, DC=com.ibm.ws.collective.

  2. Create a new root keystore with the controllerroot alias.

      keytool \
    -genkeypair \
    -keyalg RSA \
    -keystore $PATH_CONTROLLER_SERVER/resources/collective/newrootKeys.p12 \
    -storepass $NEW_ROOT_KEYSTORE_PASSWORD \
    -storetype PKCS12 \
    -alias controllerroot \
    -validity 7300 \
    -dname "$DN-NAME" \
    -ext BasicConstraints:"critical=ca:true"

    Sample command and output

      /root/wlp/java/java/jre/bin/keytool \
    -genkeypair \
    -keyalg RSA \
    -keystore /root/wlp/usr/servers/controller/resources/collective/newrootKeys.p12 \
    -storepass password \
    -storetype PKCS12 \
    -alias controllerroot
    -validity 7300 \
    -dname "OU=controllerRoot, O=6b66c164-0133-41d8-, DC=com.ibm.ws.collective" \
    -ext BasicConstraints:"critical=ca:true"

  3. Run the genkeypair command again and add the memberroot certificate to newrootKeys.p12.

      keytool \
    -genkeypair \
    -keyalg RSA \
    -keystore $PATH_CONTROLLER_SERVER/resources/collective/newrootKeys.p12 \
    -storepass $NEW_ROOT_KEYSTORE_PASSWORD \
    -storetype PKCS12 \
    -alias memberroot \
    -validity 7300 \
    -dname "DN-NAME" \
    -ext BasicConstraints:"critical=ca:true"

    Sample command and output

      /root/wlp/java/java/jre/bin/keytool \
    -genkeypair \
    -keyalg RSA \
    -keystore /root/wlp/usr/servers/controller/resources/collective/newrootKeys.p12 \
    -storepass password \
    -storetype PKCS12 \
    -alias memberroot \
    -validity 7300 \
    -dname "OU=memberroot, O=6b66c164-0133-41d8-9f78-913622da530a, DC=com.ibm.ws.collective" \
    -ext BasicConstraints:"critical=ca:true"

  4. List the keystores to verify their accuracy.

      keytool \
    -list \
    -v \
    -keystore $PATH_CONTROLLER_SERVER/resources/collective/newrootKeys.p12 \
    -storepass $KEYSTORE_PASSWORD \
    -storetype PKCS12

    Sample command and output

      /root/wlp/java/java/jre/bin/keytool \
    -list \
    -v \
    -keystore /root/wlp/usr/servers/controller/resources/collective/newrootKeys.p12 \
    -storepass password \
    -storetype PKCS12

    The controllerroot signer and the memberroot signer from the newrootKeys.p12 keystore must be added to all collective controllers and members HTTPS SSL truststore, trust.p12 and also need to be added to collectivetrust.p12 from controllers and members.

  5. Export the controllerroot signer and memberroot signer from newrootKeys.p12.

      keytool \
    -exportcert \
    -keystore $PATH_CONTROLLER_SERVER/resources/collective/newrootKeys.p12 \
    -storepass $NEW_ROOT_KEYSTORE_PASSWORD \
    -storetype PKCS12 \
    -alias controllerroot \
    -rfc >$PATH_CONTROLLER_SERVER/resources/collective/controllerroot.pem

      keytool \
    -exportcert \
    -keystore $PATH_CONTROLLER_SERVER/resources/collective/newrootKeys.p12 \
    -storepass $NEW_ROOT_KEYSTORE_PASSWORD \
    -storetype PKCS12 \
    -alias memberroot \
    -rfc >$PATH_CONTROLLER_SERVER/resources/collective/memberroot.pem

    Sample command and output

      /root/wlp/java/java/jre/bin/keytool \
    -exportcert \
    -keystore /root/wlp/usr/servers/controller/resources/collective/newrootKeys.p12 \
    -storepass password \
    -storetype PKCS12 \
    -alias controllerroot
   -rfc > /root/wlp/usr/servers/controller/resources/collective/controllerroot.pem

/root/wlp/java/java/jre/bin/keytool \
    -exportcert \
    -keystore /root/wlp/usr/servers/controller/resources/collective/newrootKeys.p12 \
    -storepass password \
    -storetype PKCS12 \
    -alias memberroot \
    -rfc > /root/wlp/usr/servers/controller/resources/collective/memberroot.pem

  6. Verify the accuracy of the content in newrootKeys.p12. If accurate, remove rootKeys.p12 and replace it with the newly generated newrootKeys.p12.

Controller: Replacing the controller and memberroot certificates inside collectiveTrust.p12 and trust.p12

  1. As a precaution, rename the existing alias for collectiveTrust.p12 and trust.p12.

      keytool
    --changealias \
    -alias "controllerroot" \
    -destalias "controllerroot-old" \
    -keystore $PATH_CONTROLLER_SERVER/resources/collective/collectiveTrust.p12 \
    -storepass $COLLECTIVETRUST_KEYSTORE_PWD \
    -storetype PKCS12

      keytool \
    --changealias \
    -alias "memberroot" \
    -destalias "memberroot-old" \
    -keystore $PATH_CONTROLLER_SERVER/resources/collective/collectiveTrust.p12 \
    -storepass $COLLECTIVETRUST_KEYSTORE_PWD \
    -storetype PKCS12

    Sample command for collectiveTrust.p12

      /root/wlp/java/java/jre/bin/keytool \
    --changealias \
    -alias "controllerroot" \
    -destalias "controllerroot-old" \
    -keystore /root/wlp/usr/servers/controller/resources/collective/collectiveTrust.p12 \
    -storepass password \
    -storetype PKCS12
/root/wlp/java/java/jre/bin/keytool
    --changealias -alias "memberroot"
    -destalias "memberroot-old"
    -keystore /root/wlp/usr/servers/controller/resources/collective/collectiveTrust.p12
    -storepass password \
    -storetype PKCS12

      keytool \
    --changealias \
    -alias "controllerroot" \
    -destalias "controllerroot-old" \
    -keystore $PATH_CONTROLLER_SERVER/resources/security/trust.p12 \
    -storepass $TRUST_KEYSTORE_PWD \
    -storetype PKCS12

      keytool \
    --changealias \
    -alias "memberroot" \
    -destalias "memberroot-old" \
    -keystore $PATH_CONTROLLER_SERVER/resources/security/trust.p12 \
    -storepass $TRUST_KEYSTORE_PWD \
    -storetype PKCS12

    Sample command for trust.p12

      /root/wlp/java/java/jre/bin/keytool
     --changealias
     -alias "controllerroot"
     -destalias "controllerroot-old"
     -keystore /root/wlp/usr/servers/controller/resources/security/trust.p12
     -storepass password
     -storetype PKCS12 /root/wlp/java/java/jre/bin/keytool
     --changealias
     -alias "memberroot"
     -destalias "memberroot-old"
     -keystore /root/wlp/usr/servers/controller/resources/security/trust.p12
     -storepass password
     -storetype PKCS12

  2. Add the memberroot signer and controllerroot signer previously created and to the collectiveTrust.p12 and trust.p12.

    1. First, process collectiveTrust.p12.

        keytool
     -importcert
     -keystore PATH_CONTROLLER_SERVER/resources/collective/collectiveTrust.p12
     -storepass $COLLECTIVETRUST_KEYSTORE_PWD
     -storetype PKCS12
     -alias controllerroot
     -trustcacerts
     -noprompt
     -file $PATH_CONTROLLER_SERVER/resources/collective/controllerroot.pem


        keytool
     -importcert
     -keystore $PATH_CONTROLLER_SERVER/resources/collective/collectiveTrust.p12
     -storepass $COLLECTIVETRUST_KEYSTORE_PWD
     -storetype PKCS12
     -alias memberroot
     -trustcacerts
     -noprompt
     -file $PATH_CONTROLLER_SERVER/controller/resources/collective/memberroot.pem

      Sample commands

        /root/wlp/java/java/jre/bin/keytool
     -importcert
     -keystore /root/wlp/usr/servers/controller/resources/collective/collectiveTrust.p12
     -storepass password
     -storetype PKCS12
     -alias controllerroot
     -trustcacerts
     -noprompt
     -file /root/wlp/usr/servers/controller/resources/collective/controllerroot.pem

/root/wlp/java/java/jre/bin/keytool
     -importcert
     -keystore /root/wlp/usr/servers/controller/resources/collective/collectiveTrust.p12
     -storepass password
     -storetype PKCS12
     -alias memberroot
     -trustcacerts
     -noprompt
     -file /root/wlp/usr/servers/controller/resources/collective/memberroot.pem

    2. Next, process trust.p12.

        /root/wlp/java/java/jre/bin/keytool \
     -importcert \
     -keystore $PATH_CONTROLLER_SERVER/resources/security/trust.p12 \
     -storepass $TRUST_KEYSTORE_PWD \
     -storetype PKCS12 \
     -alias controllerroot \
     -trustcacerts \
     -noprompt \
     -file $PATH_CONTROLLER_SERVER/resources/collective/controllerroot.pem

        /root/wlp/java/java/jre/bin/keytool \
     -importcert \
     -keystore $PATH_CONTROLLER_SERVER/resources/security/trust.p12 \
     -storepass $TRUST_KEYSTORE_PWD \
     -storetype PKCS12 \
     -alias memberroot \
     -trustcacerts \
     -noprompt \
     -file $PATH_CONTROLLER_SERVER/resources/collective/memberroot.pem

      Sample commands

        /root/wlp/java/java/jre/bin/keytool \
     -importcert \
     -keystore /root/wlp/usr/servers/controller/resources/security/trust.p12 \
     -storepass password \
     -storetype PKCS12 \
     -alias controllerroot \
     -trustcacerts \
     -noprompt \
     -file /root/wlp/usr/servers/controller/resources/collective/controllerroot.pem

/root/wlp/java/java/jre/bin/keytool \
     -importcert \
     -keystore /root/wlp/usr/servers/controller/resources/security/trust.p12 \
     -storepass password \
     -storetype PKCS12 \
     -alias memberroot \
     -trustcacerts \
     -noprompt \
     -file /root/wlp/usr/servers/controller/resources/collective/memberroot.pem

Controller: Update the serverIdentity.p12 file.

  1. List the certificates contained in the serverIdentity.p12 file.

      keytool
     -list
     -v
     -keystore $PATH_CONTROLLER_SERVER/resources/collective/serverIdentity.p12
     -storepass $NEW_KEYSTORE_PWD
     -storetype PKCS12

    Sample command and output

      /root/wlp/java/java/jre/bin/keytool
     -list
     -v
     -keystore /root/wlp/usr/servers/controller/resources/collective/serverIdentity.p12
     -storepass password
     -storetype PKCS12

 Alias name: serveridentity
 Owner: CN=controller,
   L=%2Froot%2Fwlp%2Fusr,
   L=mouthing1.fyre.ibm.com,
   OU=controller,
   O=6b66c164-0133-41d8-9f78-913622da530a,
   DC=com.ibm.ws.collective

    Save the DN-NAME of the serveridentity certificate from the output. For this example, the DN-NAME is CN=controller, L=%2Froot%2Fwlp%2Fusr, L=mouthing1.fyre.ibm.com, OU=controller, O=6b66c164-0133-41d8-9f78-, DC=com.ibm.ws.collective.

  2. Generate a new keystore using the DN-NAME from the previous output.

      keytool
    -genkeypair
    -alias serveridentity
    -dname $DN-NAME
    -keysize 2048
    -validity 7300
    -keyalg rsa
    -keystore $PATH_CONTROLLER_SERVER/resources/collective/newkeystore.p12
    -storepass $NEW_KEYSTORE_PWD
    -storetype PKCS12
    -ext BasicConstraints:"critical=ca:true"

    Sample command

      /root/wlp/java/java/jre/bin/keytool
    -genkeypair
    -alias serveridentity
    -dname "CN=controller, L=%2Froot%2Fwlp%2Fusr, L=mouthing1.fyre.ibm.com, OU=controller, O=6b66c164-0133-41d8, DC=com.ibm.ws.collective"
    -keysize 2048
    -validity 7300
    -keyalg rsa
    -keystore /root/wlp/usr/servers/controller/resources/collective/newkeystore.p12
    -storepass password
    -storetype PKCS12
    -ext BasicConstraints:"critical=ca:true"

  3. Generate a new serveridentity certificate and extract the .pem file.

      keytool \
    -certreq \
    -keystore $PATH_CONTROLLER_SERVER/resources/collective/newkeystore.p12 \
    -storepass $NEW_KEYSTORE_PWD \
    -storetype PKCS12 \
    -alias serveridentity | keytool \
    -gencert \
    -keystore $PATH_CONTROLLER_SERVER/resources/collective/newrootKeys.p12 \
    -storepass $NEW_ROOT_KEYSTORE_PWD \
    -storetype PKCS12 \
    -alias controllerroot \
    -rfc \
    -validity 7300 \
    -ext BasicConstraints:"critical=ca:true" >$PATH_CONTROLLER_SERVER/resources/collective/serveridentity.pem

    Sample command

      /root/wlp/java/java/jre/bin/keytool \
    -certreq \
    -keystore /root/wlp/usr/servers/controller/resources/collective/newkeystore.p12 \
    -storepass password \
    -storetype PKCS12 \
    -alias serveridentity | /root/wlp/java/java/jre/bin/keytool \
    -gencert \
    -keystore /root/wlp/usr/servers/controller/resources/collective/newrootKeys.p12 \
    -storepass password \
    -storetype PKCS12 \
    -alias controllerroot
    -rfc \
    -validity 7300 \
    -ext BasicConstraints:"critical=ca:true" > /root/wlp/usr/servers/controller/resources/collective/serveridentity.pem

  4. Import the controllerroot signer and serveridentity .pem files to the newkeystore.p12 keystore. Start the import process with the controllerroot signer.

      keytool \
    -importcert \
    -keystore $PATH_CONTROLLER_SERVER/resources/collective/newkeystore.p12 \
    -storepass $NEW_KEYSTORE_PWD \
    -storetype PKCS12 \
    -alias controllerroot \
    -trustcacerts \
    -noprompt \
    -file $PATH_CONTROLLER_SERVER/resources/collective/controllerroot.pem

    Sample command

      /root/wlp/java/java/jre/bin/keytool \
    -importcert \
    -keystore /root/wlp/usr/servers/controller/resources/collective/newkeystore.p12 \
    -storepass password \
    -storetype PKCS12 \
    -alias controllerroot
    -trustcacerts \
    -noprompt \
    -file /root/wlp/usr/servers/controller/resources/collective/controllerroot.pem

    Next, perform the import process with the serveridentity.pem file.

      keytool \
    -importcert \
    -keystore $PATH_CONTROLLER_SERVER/resources/collective/newkeystore.p12 \
    -storepass $NEW_KEYSTORE_PWD \
    -storetype PKCS12 \
    -alias serveridentity \
    -file $PATH_CONTROLLER_SERVER/resources/collective/serveridentity.pem

    Sample command

      /root/wlp/java/java/jre/bin/keytool \
    -importcert \
    -keystore /root/wlp/usr/servers/controller/resources/collective/newkeystore.p12 \
    -storepass password \
    -storetype PKCS12 \
    -alias serveridentity \
    -file /root/wlp/usr/servers/controller/resources/collective/serveridentity.pem

  5. List all certificates to confirm successful processing.

      keytool \
    -list \
    -v \
    -keystore $PATH_CONTROLLER_SERVER/resources/collective/newkeystore.p12 \
    -storepass $NEW_KEYSTORE_PWD \
    -storetype PKCS12

    Sample command

      /root/wlp/java/java/jre/bin/keytool \
    -list \
    -v \
    -keystore /root/wlp/usr/servers/controller/resources/collective/newkeystore.p12 \
    -storepass password \
    -storetype PKCS12

    Note: Verify that the certificate that is presented has the new expiration date.

  6. If verification is successful, remove the serveridentity.p12 file and replace it with the newly generated newkeystore.p12 file.

Controller: Update the key.p12 file.

  1. List the certificates contained in the key.p12 file using this command.

      keytool \
    -list \
    -v \
    -keystore $PATH_CONTROLLER_SERVER/resources/security/key.p12 \
    -storepass $KEY_P12_PWD \
    -storetype PKCS12

    Sample command with output

      /root/wlp/java/java/jre/bin/keytool \
    -list \
    -v \
    -keystore /root/wlp/usr/servers/controller/resources/security/key.p12 \
    -storepass password \
    -storetype PKCS12

Alias name: default Owner: CN=mouthing1.fyre.ibm.com, OU=controller, O=ibm, C=us

    Save the DN-NAME of the default certificate. From this sample, the DN-NAME is CN=mouthing1.fyre.ibm.com, OU=controller, O=ibm, C=us.

  2. Use the DN-NAME in previous step to generate a new keystore.

      keytool \
    -genkeypair \
    -alias default \
    -dname "$DN-NAME" \
    -keysize 2048 \
    -validity 7300 \
    -keyalg rsa \
    -keystore $PATH_CONTROLLER_SERVER/resources/security/newkey.p12 \
    -storepass $NEW_KEYSTORE_PWD \
    -storetype PKCS12 \
    -ext BasicConstraints:"critical=ca:true"

    Sample command

      /root/wlp/java/java/jre/bin/keytool \
    -genkeypair \
    -alias default \
    -dname "CN=mouthing1.fyre.ibm.com, OU=controller, O=ibm, C=us" \
    -keysize 2048 \
    -validity 7300 \
    -keyalg rsa \
    -keystore /root/wlp/usr/servers/controller/resources/security/newkey.p12 \
    -storepass password \
    -storetype PKCS12 \
    -ext BasicConstraints:"critical=ca:true"

  3. Generate a new default.pem certificate and extract the .pem file.

      keytool \
    -certreq \
    -keystore $PATH_CONTROLLER_SERVER/resources/security/newkey.p12 \
    -storepass $NEW_KEYSTORE_PWD \
    -storetype PKCS12 \
    -alias default

/root/wlp/java/java/jre/bin/keytool \
    -gencert \
    -keystore $PATH_CONTROLLER_SERVER/resources/collective/newrootKeys.p12 \
    -storepass $NEW_ROOT_KEYSTORE_PWD \
    -storetype PKCS12 \
    -alias controllerroot \
    -rfc \
    -validity 7300 \
    -ext BasicConstraints:"critical=ca:true" >$PATH_CONTROLLER_SERVER/resources/security/default.pem

    Sample command

      /root/wlp/java/java/jre/bin/keytool \
    -certreq \
    -keystore /root/wlp/usr/servers/controller/resources/security/newkey.p12 \
    -storepass password \
    -storetype PKCS12 \
    -alias default

/root/wlp/java/java/jre/bin/keytool \
    -gencert \
    -keystore /root/wlp/usr/servers/controller/resources/collective/newrootKeys.p12 \
    -storepass password \
    -storetype PKCS12 \
    -alias controllerroot
    -rfc \
    -validity 7300 \
    -ext BasicConstraints:"critical=ca:true" > /root/wlp/usr/servers/controller/resources/security/default.pem

  4. Import the controllerroot signer and default.pem files to the newkey.p12 keystore.

    1. Start with controllerroot signer and use this command.

        keytool \
    -importcert \
    -keystore $PATH_CONTROLLER_SERVER/resources/security/newkey.p12 \
    -storepass $NEW_KEYSTORE_PWD \
    -storetype PKCS12 \
    -alias controllerroot \
    -trustcacerts \
    -noprompt \
    -file $PATH_CONTROLLER_SERVER/resources/collective/controllerroot.pem

      Sample command

        /root/wlp/java/java/jre/bin/keytool \
    -importcert \
    -keystore /root/wlp/usr/servers/controller/resources/security/newkey.p12 \
    -storepass password \
    -storetype PKCS12 \
    -alias controllerroot \
    -trustcacerts \
    -noprompt \
    -file /root/wlp/usr/servers/controller/resources/collective/controllerroot.pem

    2. Use the default.pem file in this command.

        : keytool \
    -importcert \
    -keystore $PATH_CONTROLLER_SERVER/resources/security/newkey.p12 \
    -storepass $NEW_KEYSTORE_PWD \
    -storetype PKCS12 \
    -alias default \
    -file $PATH_CONTROLLER_SERVER/resources/security/default.pem

      Sample command

        /root/wlp/java/java/jre/bin/keytool \
    -importcert \
    -keystore /root/wlp/usr/servers/controller/resources/security/newkey.p12 \
    -storepass password \
    -storetype PKCS12 \
    -alias default \
    -file /root/wlp/usr/servers/controller/resources/security/default.pem

  5. List all certificates to confirm that processing is as expected.

      keytool \
    -list \
    -v \
    -keystore $PATH_CONTROLLER_SERVER/resources/security/newkey.p12 \
    -storepass $NEW_KEYSTORE_PWD \
    -storetype PKCS12

    Sample command

      /root/wlp/java/java/jre/bin/keytool \
    -list \
    -v \
    -keystore /root/wlp/usr/servers/controller/resources/security/newkey.p12 \
    -storepass password \
    -storetype PKCS12

    Note: Verify that the certificate that is presented has the new expiration date.

  6. If processing is successful, remove the key.p12 file and replace it with the newly-generated newkey.p12 file.

Controller: Wrapping up

  1. Before starting the controller, delete the controllerrot-old and memberroot\u0002old from these keystores:

    • collectiveTrust.p12
    • trust.p12

  2. Run this command

      /root/wlp/java/java/jre/bin/keytool \
    -delete \
    -alias "$CONTROLLERROOT_MEMBERROOT-old" \
    -keystore $PATH_CONTROLLER_SERVER/resources/$COLLECTIVE_OR_SECURITY/$COLLECTIVETRUST_OR_TRUST.p12 \
    -storepass password \
    -storetype PKCS12

    Sample command

      /root/wlp/java/java/jre/bin/keytool \
    -delete \
    -alias "controllerrootold" \
    -keystore /root/wlp/usr/servers/controller/resources/collective/collectiveTrust.p12 \
    -storepass password \
    -storetype PKCS12

/root/wlp/java/java/jre/bin/keytool \
    -delete \
    -alias "memberroot-old"
    -keystore /root/wlp/usr/servers/controller/resources/collective/collectiveTrust.p12 \
    -storepass password \
    -storetype PKCS12 \


        /root/wlp/java/java/jre/bin/keytool \
    -delete \
    -alias "controllerrootold" \
    -keystore /root/wlp/usr/servers/controller/resources/security/trust.p12 \
    -storepass password \
    -storetype PKCS12

 /root/wlp/java/java/jre/bin/keytool \
    -delete \
    -alias "memberroot-old" \
    --keystore /root/wlp/usr/servers/controller/resources/security/trust.p12
    -storepass password \
    -storetype PKCS12

  3. If all processing is successful, restart the controller.

    Note: You have successfully generated the controller server certificates.

Generate members certificates

  1. Replace the controllerroot signer and memberroot signer contained in the collectiveTrust.p12 file and the trust.p12 file.

    1. Rename the existing alias in the collectiveTrust.p12 file and the trust.p12 file Start with the collectiveTrust.p12 file and use these commands:

      • Update the alias names of the existing controllerroot signer and memberroot signer.

          keytool \
    --changealias \
    -alias "controllerroot" \
    -destalias "controllerroot-old" \
    -keystore $PATH_MEMBER_SERVER/resources/collective/collectiveTrust.p12 \
    -storepass $COLLECTIVE_TRUST_KEYSTORE_PWD \
    -storetype PKCS12

 keytool \
    --changealias \
    -alias "memberroot" \
    -destalias "memberroot-old" \
    -keystore $PATH_MEMBER_SERVER/resources/collective/collectiveTrust.p12 \
    -storepass $COLLECTIVE_TRUST_KEYSTORE_PWD \
    -storetype PKCS12

        Sample command

          /root/wlp/java/java/jre/bin/keytool \
    --changealias \
    -alias "controllerroot" \
    -destalias "controllerroot-old" \
    -keystore /root/wlp/usr/servers/member/resources/collective/collectiveTrust.p12 \
    -storepass password \
    -storetype PKCS12

 /root/wlp/java/java/jre/bin/keytool \
    --changealias \
    -alias "memberroot" \
    -destalias "memberroot-old" \
    -keystore /root/wlp/usr/servers/member/resources/collective/collectiveTrust.p12 \
    -storepass password \
    -storetype PKCS12

      • Repeat the same commands for the trust.p12 file.

          keytool \
    --changealias \
    -alias "memberroot" \
    -destalias "memberroot-old" \
    -keystore /$PATH_MEMBER_SERVER/resources/security/trust.p12 \
    -storepass $TRUST_KEYSTORE_PWD \
    -storetype PKCS12

 keytool \
    --changealias \
    -alias "controllerroot" \
    -destalias "controllerroot-old" \
    -keystore $PATH_MEMBER_SERVER/resources/security/trust.p12 \
    -storepass $TRUST_KEYSTORE_PWD \
    -storetype PKCS12

        Sample command

          /root/wlp/java/java/jre/bin/keytool \
    --changealias \
    -alias "memberroot" \
    -destalias "memberroot-old" \
    -keystore /root/wlp/usr/servers/member/resources/security/trust.p12 \
    -storepass password \
    -storetype PKCS12

/root/wlp/java/java/jre/bin/keytool \
    --changealias \
    -alias "controllerroot" \
    -destalias "controllerroot-old" \
    -keystore /root/wlp/usr/servers/member/resources/security/trust.p12 \
    -storepass password \
    -storetype PKCS12

    2. Add controllerroot signer and memberroot signer to the collectiveTrust.p12 file.

      1. Process collectiveTrust.p12.

          keytool \
    -importcert \
    -keystore $PATH_MEMBER_SERVER/resources/collective/collectiveTrust.p12 \
    -storepass $COLLECTIVE_TRUST_KEYSTORE_PWD \
    -storetype PKCS12 \
    -alias memberroot \
    -trustcacerts \
    -noprompt \
    -file /root/wlp/usr/servers/controller/resources/collective/memberroot.pem

 keytool \
    -importcert \
    -keystore $PATH_MEMBER_SERVER/resources/collective/collectiveTrust.p12 \
    -storepass $COLLECTIVE_TRUST_KEYSTORE_PWD \
    -storetype PKCS12 \
    -alias controllerroot \
    -trustcacerts \
    -noprompt \
    -file /root/wlp/usr/servers/controller/resources/collective/controllerroot.pem

        Sample command

          /root/wlp/java/java/jre/bin/keytool \
    -importcert \
    -keystore /root/wlp/usr/servers/member/resources/collective/collectiveTrust.p12 \
    -storepass password \
    -storetype PKCS12 \
    -alias memberroot \
    -trustcacerts \
    -noprompt \
    -file /root/wlp/usr/servers/controller/resources/collective/memberroot.pem

/root/wlp/java/java/jre/bin/keytool \
    -importcert \
    -keystore /root/wlp/usr/servers/member/resources/collective/collectiveTrust.p12 \
    -storepass password \
    -storetype PKCS12 \
    -alias controllerroot \
    -trustcacerts \
    -noprompt \
    -file /root/wlp/usr/servers/controller/resources/collective/controllerroot.pem

      2. Add controllerroot signer and memberroot signer to the trust.p12 file.

          /root/wlp/java/java/jre/bin/keytool \
    -importcert \
    -keystore $PATH_MEMBER_SERVER/resources/security/trust.p12 \
    -storepass password \
    -storetype PKCS12 \
    -alias memberroot \
    -trustcacerts \
    -noprompt \
    -file /root/wlp/usr/servers/controller/resources/collective/memberroot.pem/root

/wlp/java/java/jre/bin/keytool \
    -importcert \
    -keystore $PATH_MEMBER_SERVER/resources/security/trust.p12 \
    -storepass password \
    -storetype PKCS12 \
    -alias controllerroot \
    -trustcacerts \
    -noprompt \
    -file /root/wlp/usr/servers/controller/resources/collective/controllerroot.pem

        Sample commands

          /root/wlp/java/java/jre/bin/keytool \
    -importcert \
    -keystore /root/wlp/usr/servers/member/resources/security/trust.p12 \
    -storepass password \
    -storetype PKCS12 \
    -alias memberroot \
    -trustcacerts \
    -noprompt \
    -file /root/wlp/usr/servers/controller/resources/collective/memberroot.pem

/root/wlp/java/java/jre/bin/keytool \
    -importcert \
    -keystore /root/wlp/usr/servers/member/resources/security/trust.p12 \
    -storepass password \
    -storetype PKCS12 \
    -alias controllerroot \
    -trustcacerts \
    -noprompt \
    -file /root/wlp/usr/servers/controller/resources/collective/controllerroot.pem

Member: Working with serverIdentity.p12

Important: Before we start this process, make sure your controller is using the new keystores (rootKey.p12, serverIdentity.p12 and key.p12) and that we have restarted the server. In the next steps we use collective genKey command.

For example: On the controller side, make sure that we have renamed the newrootkey.p12 file to rootkey.p12 ...etc.

  1. List the certificates contained in the serverIdentity.p12 keystore

      /root/wlp/java/java/jre/bin/keytool \
    -list \
    -v \
    -keystore $PATH_MEMBER_SERVER/resources/resources/collective/serverIdentity.p12 \
    -storepass $KEYSTORE_PWD \
    -storetype PKCS12

    Sample command and output

      /root/wlp/java/java/jre/bin/keytool \
    -list \
    -v \
    -keystore /root/wlp/usr/servers/member/resources/collective/serverIdentity.p12 \
    -storepass password \
    -storetype PKCS12

Alias name: serveridentity
Owner: CN=member, L=%2Froot%2Fwlp%2Fusr,
L=mouthing1.fyre.ibm.com, OU=member, O=6b66c164-0133-41d8-9f78-
913622da530a, DC=com.ibm.ws.collective

    Save the DN-NAME of the serverIdentity certificate from the output. From the sample command, the DN-NAME is CN=member, L=%2Froot%2Fwlp%2Fusr, L=mouthing1.fyre.ibm.com, OU=member, O=6b66c164-0133-41d8-9f78-, DC=com.ibm.ws.collective.

  2. Run the collective genKey command to generate a new serverIdentity.p12 keystore

      /root/wlp/bin/collective genKey \
    --host=$HOSTNAME \
    --password=$ADMIN_PWD \
    --port=$SECURE_PORT_NUMBER \
    --user=$ADMIN_USER \
    --keystorePassword=KEYSTORE_PWD \
    --autoAcceptCertificates \
    --certificateSubject="$DN-NAME" \
    --certificateValidity=$NUMBER_OF_DAYS_CERT_WILL_BE_VALID

    Sample command

      /root/wlp/bin/collective genKey \
    --host=mouthing1.fyre.ibm.com \
    --password=password \
    --port=9443 \
    --user=admin \
    --keystorePassword=password \
    --autoAcceptCertificates \
    --certificateSubject="CN=member, L=%2Froot%2Fwlp%2Fusr, L=mouthing1.fyre.ibm.com, OU=member, O=6b66c164-0133-41d8-9f78
, DC=com.ibm.ws.collective" \
    --certificateValidity=3600

    The genKey command generates a key.p12 keystore inside the directory /root/wlp/bin/collective we used to run the genKey command. For more information about the genKey command, see Generate collective SSL keys.Avoid Trouble: Make sure the controller is up and running when we run the genKey command.

  3. Rename the newly-generated key.p12 keystore to serveridentity.p12 then replace the newly-generated keystore that is renamed to serveridentity.p12 inside the path as shown, $PATH_MEMBER_SERVER/resources/collective/serverIdentity.p12.

Member: Working with the key.p12 file

  1. List the certificates contained in your key.p12 keystore.

      /root/wlp/java/java/jre/bin/keytool \
    -list \
    -v \
    -keystore $PATH_MEMBER_SERVER/resources/collective/key.p12 \
    -storepass $KEYSTORE_PWD \
    -storetype PKCS12

    Sample command and output

      /root/wlp/java/java/jre/bin/keytool \
    -list \
    -v \
    -keystore /root/wlp/usr/servers/member/resources/security/key.p12 \
    -storepass password \
    -storetype PKCS12

Alias name: default Owner: CN=mouthing1.fyre.ibm.com, OU=member, O=ibm, C=us

    Save the DN-NAME of the default certificate from the output. In this case, the DN-NAME is CN=mouthing1.fyre.ibm.com, OU=member, O=ibm, C=us.

  2. Run the collective genKey command to generate a new serveridentity.p12 keystore.

      /root/wlp/bin/collective genKey
    \
    --host=$HOSTNAME
    --password=$ADMIN_PWD
    --port=$SECURE_PORT_NUMBER
    --user=$ADMIN_USER
    --keystorePassword=password
    --autoAcceptCertificates
    --certificateSubject="$DN-NAME"

    Sample command

      /root/wlp/bin/collective genKey
    --host=mouthing1.fyre.ibm.com
    --password=password
    --port=9443
    --user=admin
    --keystorePassword=password
    --autoAcceptCertificates
    --certificateSubject="CN=mouthing1.fyre.ibm.com, OU=member, O=ibm, C=us"

    The genKey command generates a key.p12 keystore inside the directory, /root/wlp/bin/collective, we used in the previous step. For more information about the genKey command, see Generate collective SSL keys.Avoid Trouble: Make sure the controller is up and running when we run the genKey command.

    1. Replace the original key.p12 file with the newly-generated keystore.

    2. Place the newly-generated keystore key.p12 inside the path, $PATH_MEMBER_SERVER/resources/collective/key.p12.

Member: Wrapping up

  1. Before restarting the member, make sure to delete controllerroot-old and memberroot-old from the following keystores:

    • collectiveTrust.p12
    • trust.p12

    1. Make the deletions.

        /root/wlp/java/java/jre/bin/keytool \
    -delete \
    -alias "$CONTROLLERROOT_MEMBERROOT-old"
    -keystore $PATH_MEMBER_SERVER/resources/$COLLECTIVE_OR_SECURITY/$COLLECTIVETRUST_OR_TRUST.p12 \
    -storepass password \
    -storetype PKCS12

      Sample command

        /root/wlp/java/java/jre/bin/keytool \
    -delete \
    -alias "controllerrootold"
    -keystore /root/wlp/usr/servers/member/resources/security/collectiveTrust.p12 \
    -storepass password \
    -storetype PKCS12

/root/wlp/java/java/jre/bin/keytool \
    -delete \
    -alias "memberroot-old"
    -keystore /root/wlp/usr/servers/member/resources/security/collectiveTrust.p12 \
    -storepass password \
    -storetype PKCS12

  2. If all the processing is successful, restart the member.

    Note: You have finished generating the member server certificates.

Final cleanup

  1. If all processing is as expected after starting the servers, We can remove any remaining .pem files and/or backups.


Parent topic: Configure security for Liberty collectives


Related information
